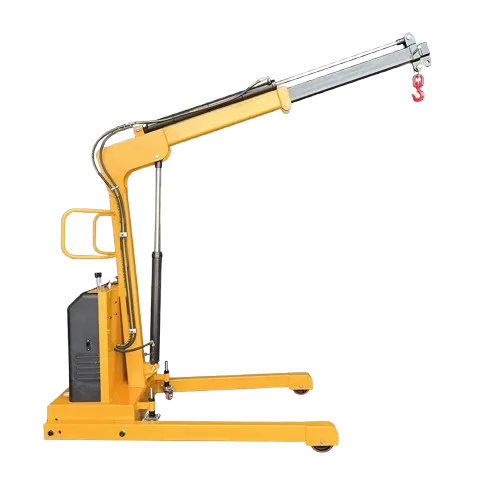

The semi-battery design incorporates a rechargeable battery that powers the hydraulic system, providing smooth and controlled lifting with minimal manual effort from the operator. While the operator manually steers and positions the crane, the electric lift mechanism handles the lifting and lowering of the load, reducing physical strain and improving operational efficiency. Additional features often include adjustable lifting heights, a rotating or swiveling boom for better maneuverability, and safety mechanisms such as overload protection and secure locking systems to ensure stability and safety during use. The crane is designed with ergonomic controls for easy operation and durable construction to withstand the demands of heavy-duty lifting tasks. The semi-battery floor crane is ideal for a variety of tasks such as machinery maintenance, material handling, and assembly work, offering a practical and efficient solution to enhance productivity and reduce manual effort in moving heavy items.

Specifications

Specification
		Unit	A	B	C	D	E	F
0 degree	Length	Mm	1440	2300	2500	2700	2900	3100
	Rated Load	kg	1000	342	290	250	220	200
40 degree	Length	Mm	985	1610	1756	1900	2045	2090
	Rated Load	kg	1100	565	430	345	290	250
Inner size of Legs		mm	985
Outer Size of Legs		Mm	1170
Net Weight		kg	466
