Char acteristics

1.1

Manufacturer(abbreviated)

1.2

Model

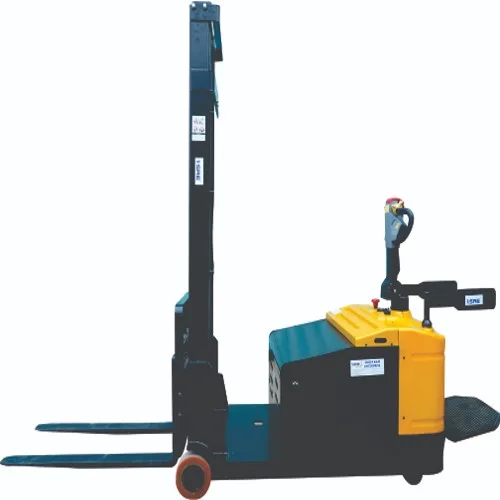

CPD15R

1.3

Driving model：Electric(Storage battery),

Electric

1.4

Driving model（ Manual, Walking, Stand

driving, Seat driving ,Order picking）

Stand driving

1.5

Rated load

Q(kg)

1500

1.6

Load centerdistance

c(mm

500

1.8

Front overhang

x(mm

130

1.9

Tread

Y(m

1330

Weig ht

2.1

Service weight(with battery)

kg

2030

2.2

Axle load, front/rear, laden

kg

420/3110

2.3

Axle load, front/rear, unladen

kg

1170/860

Whee l chassis

3.1

Wheels (rubber, high elasticity, pneumatic

polyurethane

3.2

Wheel dimension, front

φ250×70

3.3

Wheel dimension, rear

Φ200×100

3.4

Balance wheelsize

Φ150×60

3.5

Additional wheel(dimension)

1x+2/2

3.6

Tread, front

b10(m

890

3.7

Tread, rear

b11(m

612

Dime nsion

4.1

Mast/front forward/backward

°

3/6

4.2

Height of mast,lowered

h1(m

      2085

4.3

Free lifting height (optional)

h2(m

   1500

4.4

Lift height

h3(m

   4500

4.5

Max. height of mast, extended

h4(m

    5500

4.9

Min. /Max.height of operation handle, in

h14(m

1160/1460

4.19

Overall length

l1(m

2660

4.20

Length to fork face

l2(m

1700

4.21

Overall widthof truck body

b1(m

990

4.22

Fork dimension

s/e/l(

35/100/950(1070)

4.25

Overall width of fork

b5(m

680

4.32

Wheelbase grounddistance

m2(m

55

4.33

Aisle width, with  pallet         1000x1200

Ast(m

2990

4.34

Aisle  width,  with  pallet         800x1200

Ast(m

3120

4.35

Turning radius

Wa(m

1600

Perfo rman ce Data

5.1

Traveling speed, laden/unladen

Km/h

6.8/7

5.2

Lifting speed, laden/unladen

m/s

0.12/0.19

5.3

Descending speed,laden/ unladen

m/s

0--0.42/0--0.41

5.8

Max. gradeability, laden/unladen

%

6/10

5.10

Traveling brake

Electromagnetib

Moto r

6.1

Driving motorpower

kW

1.2(AC)

6.2

Lifting motor power

kW

4.5

6.4

Battery voltage/rated capacity

V/Ah

24/320

6.5

Battery weight

kg

300-360

Battery dimension（LXWXH）

mm

812×270×520

8.4

Noise level at operator’s ear, according to

DIN12053

dB(A)

65
