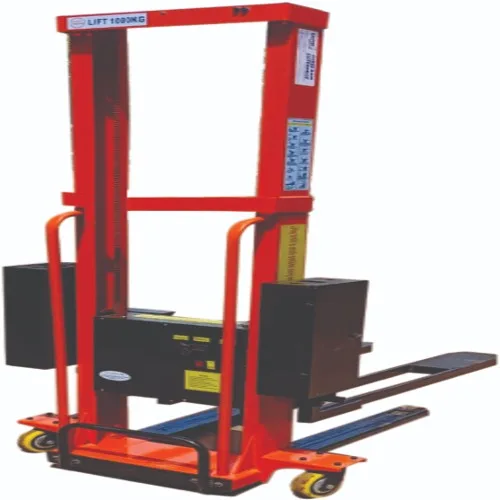

Safety is a key consideration, with features such as overload protection, emergency stop buttons, and stability sensors that ensure secure operation even under heavy or uneven loads. The self-loading stacker's compact design and maneuverable wheels or casters allow it to navigate narrow aisles and tight spaces, making it ideal for use in warehouses, manufacturing facilities, and distribution centers. By automating the loading process, the self-loading stacker not only enhances productivity but also reduces manual labor, streamlining material handling operations and providing a valuable, safe, and efficient solution for material management.
Drive Mode | Electric | |
Capacity | 1000KG | |
Rated load Capacity | 500 KG | |
Lifting Height | 1600 mm | |
Fork Width | 570mm | |
Fork length | 1150mm | |
Fork Width in to in | 250mm | |
Leg Width Out to Out | 490mm | |
Leg Width in to in | 290mm | |
Leg length | 820mm | |
Wheel(Pu) | 125x45mm 2 nose | |
Wheel (Nylon) | 80x50 mm 4 nose | |
Machine Weight | 233kg |
|
DC POWER PACK | - | |
Battery make | Amron | |
Voltage | 12V-7AH /4NOS | |
Total 4 nos | 48V | |
|
| |
INTELLIGENT CHARGER | - | |
Charge for lead Acid Battery | ||
*MODEL | 48V -20AH | |
Input Power | 190W | |
Dc Out Put | 48-59V | |
In Put Voltage | 220V-50HZ | |
